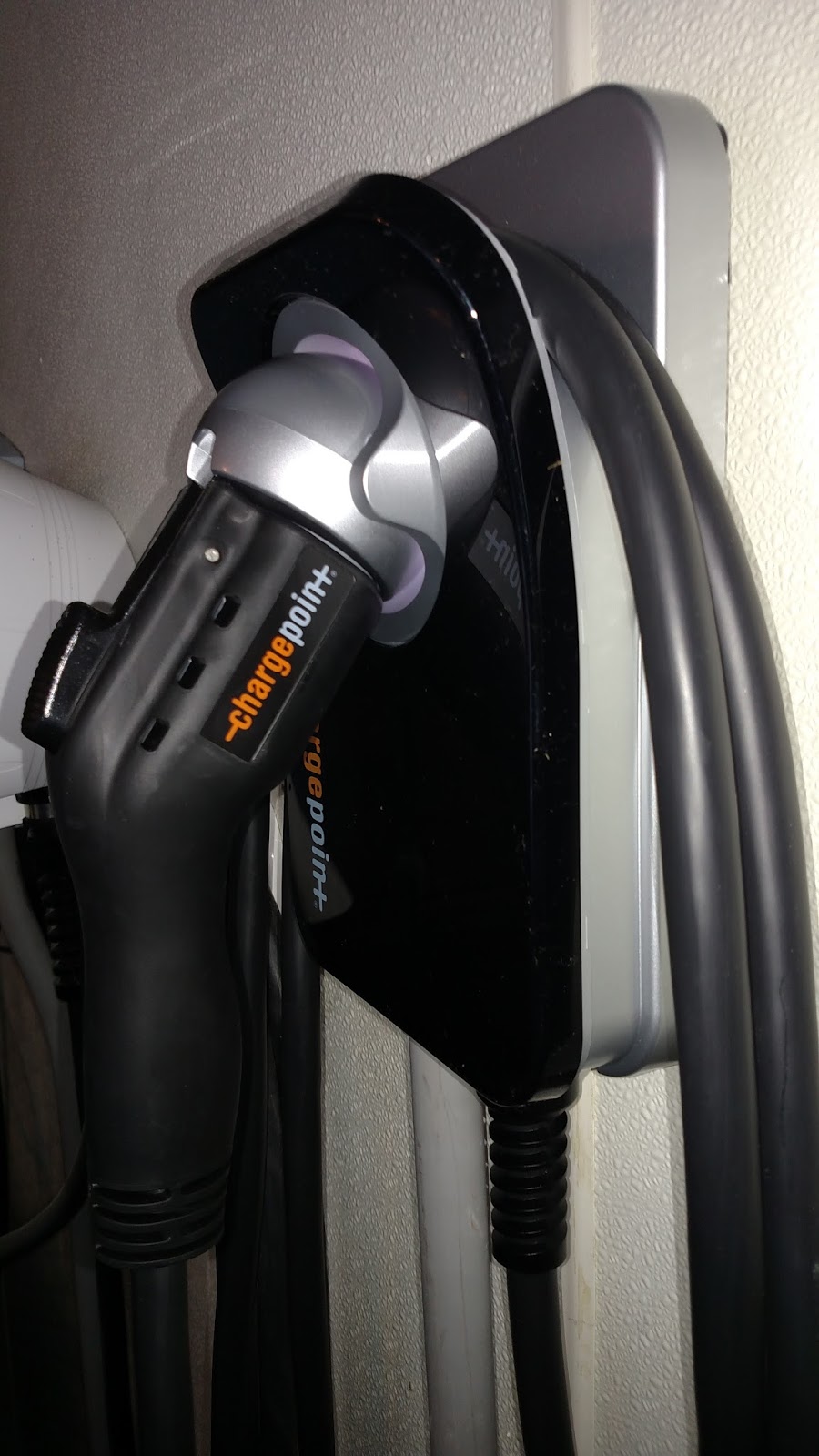

The ChargePoint Home 25 EVSE is the latest addition to my EVSE collection

When most electric vehicle owners think of ChargePoint, they likely are thinking about public charging infrastructure. That's because for the past five years, ChargePoint's focus has been on installing and maintaining the largest network of public EVSEs in the US, with well over 20,000 locations currently in use.

Back in 2012, ChargePoint did release an EVSE for home charging, the CT500 made by Coulomb Technologies, but it was priced a bit above the market at $2,495. At the time, it was the only home EVSE that was networked, so that was a major advantage. However, the price was prohibitively high and competitive units were selling for half of that, so the CT500 never sold in any serious volume.

That won't be the case with ChargePoint Home, ChargePoint's new entry in the home EVSE market. I've had the opportunity to test this product for a month now, before the official launch and I've been really impressed.
Options

There are two power levels offered, a 16 amp unit (The ChargePoint Home 12) and one which can deliver up to 32 amps (The ChargePoint Home 25). If you're wondering why "12" and "25" are used in the product names it is because ChargePoint is advertising that the 16 amp unit is capable of adding 12 miles of range per hour to the typical EV, and 25 miles of range per hour for the 32 amp unit. I'm not particularly fond of using that method to name them, since every EV is capable of achieving different levels of efficiency. Plus, I think it may confuse some people who think the number is the amps the EVSE is capable delivering. However, this is only the name so it's not really a big consideration.

Since I'm discussing the power delivery, this brings me to one of the few criticism I have for the new ChargePoint Home. While 32 amps is above the maximum charging limit for any currently-offered electric vehicle that isn't a Tesla or that uses a Tesla onboard charger (Mercedes B-Class ED), some of the competition is now offering 40 amp and 50 amp home charging solutions. These would be attractive for Tesla owners, and perhaps someone who wanted to future-proof their garage. I suspect ChargePoint would be ready to offer a higher powered version in the future if there are any new electric vehicles offered that can accept more than 32 amps. However, considering the current electric vehicle offerings, 32 amps is fine.

I got the optional 25' cord

After selecting whether you want the 16 amp or 32 amp EVSE, you then have the option of choosing a hard wired unit or one that plugs in. The 16 amp plug-in version uses a NEMA 6-20 outlet and the 32 amp plug-in EVSE uses a NEMA 6-50 outlet. Once that is decided you can choose the length of cable you want, but that's only if you buy the 32 amp version. For some reason, the 16 amp version only comes with a 12' cord, you cannot order it with one longer. That could be a deal breaker for some people whose garage is set up in a way that twelve feet of cable won't reach their charge port. On the other hand, the 32 amp unit comes standard with an 18' cord, and has an optional 25' cord for an additional $50. It's a bit puzzling why the lower powered unit isn't available with a longer cord, and I believe this will steer many potential customers to the higher powered EVSE, even if they originally considered the lower powered unit (maybe that's the plan!).  I did reach out to ChargePoint about this and was told that a customer can order a replacement cord of either 18' or 25' length and replace the 12' standard cord that comes with the 16 amp EVSE. I didn't get the pricing, but I assume it will cost considerably more than the $50 up-charge when you upgrade from an 18' cord to the 25'cord on a ChargePoint Home 25 (32 amp). The rep also told me that if there is demand for longer cords on the 16 amp unit, then ChargePoint will consider offering it at a later date.

Installation

Drill bit & nut driver

If you choose to go with one of the plug-in versions, you'll need to have an electrician install the appropriate outlet in your garage. The 16 amp unit requires a 20 amp, 240v dedicated circuit with a  NEMA 6-20 outlet and the 32 amp EVSE requires a 40 amp circuit with a NEMA 6-50 outlet. I chose the 32 amp hard wired one, with a 25 foot cord. Since I was replacing one of my older EVSEs with the Home unit, it was an extremely simple process, and that wasn't by accident. ChargePoint made every effort to make installing the Home EVSE as easy as possible, especially if the owner was swapping out an older EVSE for the new Home unit. In that case, it's so easy to do that the average person can probably complete the installation in less than an hour. I had mine installed in about 30 minutes. A drill bit and nut driver for the supplied wall mounting screws are even included. One aspect of the installation I found curious is that all three mounting screws run down the center of the unit, as opposed to the four corners. This could possibly cause the EVSE to rock a bit from side to side if the wall it's mounted on isn't flat. I'd prefer if the mounting screws were in the four corners, which would provide for a more secure mount on uneven surfaces.


                                  ChargePoint Home installation video

Another great feature is how compact, lightweight and portable the ChargePoint Home is. At only 11.2" by 7" it's stylish and not bulky. It has a back-lit connector holster which swivels up and down and that helps to make returning the connector to the base easy, even in the dark. If you choose the plug in version, you can easily take this EVSE with you for charging away from home. All you would need is the appropriate outlet at your destination. The ChargePoint Home is indoor and outdoor rated and is UL listed.




















The ChargePoint app displays useful charging information such as current and cumulative energy draw. You can also set a "Remind Me to Plug in" notification, so you never wake up to an uncharged EV.

Connected

Perhaps the best feature of ChargePoint Home is that it can be integrated with your ChargePoint account which allows the user access to information from the ChargePoint mobile app. This includes viewing information on the current charging session, remotely start and schedule charging, set notification reminders so you don't forget to plug in, review data on past charging sessions, and it even works with Nest thermostat products which can help save energy.

ChargePoint Home EVSE pricing starts at $499 for the Home 12 hard wired station and goes up to $749 for the Home 25 plug in station with a 25 foot cord. Full pricing details are below. ChargePoint Home has a three year warranty and is available through Amazon.

ChargePoint Home 12: 16A Hardwire station with 12' cord	$499
ChargePoint Home 12: 16A Plug station with 12' cord	$549
ChargePoint Home 25: 32A Hardwire station with 18' cord	$649
ChargePoint Home 25: 32A Plug station with 18' cord	$699
ChargePoint Home 25: 32A Hardwire station with 25' cord	$699
ChargePoint Home 25: 32A Plug station with 25' cord	$749

Slim, compact design

I've been using my ChargePoint Home 25 for a few weeks now and I really like it. ChargePoint has a winner with this EVSE, and I predict it will sell very well. I've been driving electric for over six years now, and I've seen the evolution of EVSE products. It's good to see the products continue to improve just as the prices continue to go down. The ChargePoint Home delivers on size, portability, quality and ease of installation. It's stylish, competitively priced, and best of all connected to the ChargePoint Network which allows the user mobile access to effective tools which can enhance their electric lifestyle. This all adds up to great news for EV owners.



Note: I received for free, one ChargePoint Home 25 EVSE from ChargePoint for testing, feedback and product review publication before the consumer launch. No other compensation was made.
